Comprehensive Bread Making Production Line Features:
High accuracy
High capacity
High speed
can make different kind of bread,like hamburger,toast,hot dog bread,baguette,and pizza
Production Line Drawing:
About the bakery line:
1.water chiller
Output: 500-1000 L/h cold water(3-5 ℃)
material: 304 stainless steel,100mm PU insulation layer,automatic water metering controller.
With USA refrigerating machine, R404 refrigerant.
2.Removable dough mixer
Material:carbon steel and 304 stainless steel.
The bakery mixer set more than 10 kinds of mixing procedures,reserved auto powder mouth, and water inlet, can be connected to the automatic powder and automatic batching system.
Specification:
Model | Bowl DimΦ*H(mm) | Power(kw) | Dough (kg) | Spiral speed(r/min) | Bowl speed(r/min) |
SMR130B | Φ800*448 | 13.5kw | 130kg | 115/230 | 17.8 |
SMR200B | Φ900*548 | 22kw | 200kg | 102.5/205 | 11.7 |
SMR300B | Φ1098*548 | 27kw | 300kg | 100/200 | 12 |
3.dough chunker,304 stainless steel,500L-1000L hopper capacity.The smart cutters cut the dough into large pieces

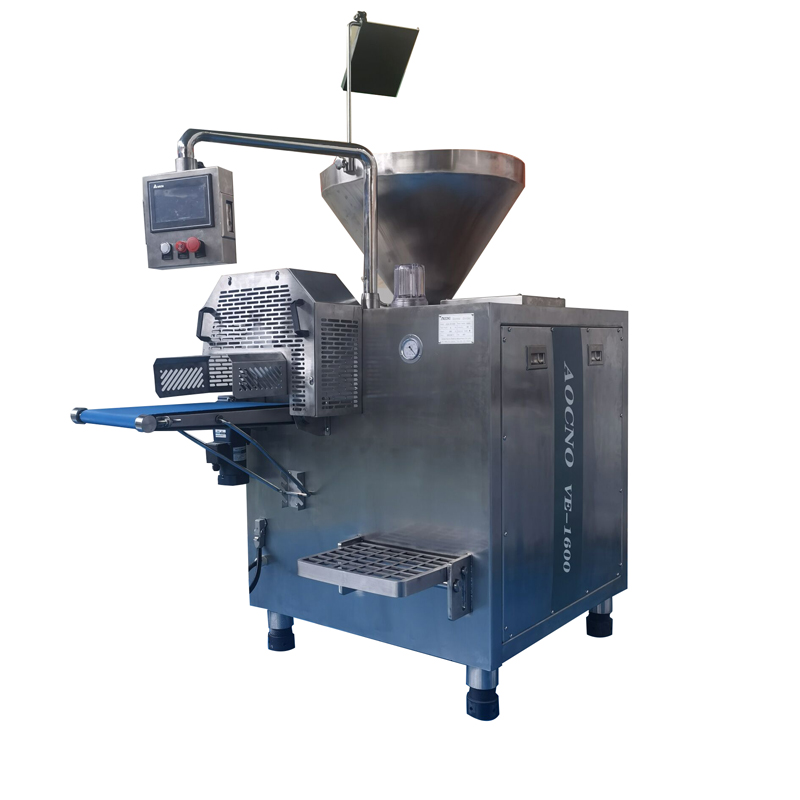

4.dough divider(VE-1600): The baking dough divider use vacuum exhaust system, built-in vacuum pump, no need for external compressed air.
Type | Power | Maximum divided weight | Capacity | dough range | Details |
VE-1600 | 12 kW | 1600 kg/h | 100 pcs/min | 40g-500g | made of 304 stainless steel, Siemens PLC 9 inch touch screen. |
5.dough rounder
6.dough moulder,for different kind of bread,like hamburger,hot dog bread,bun,toast.baguette,rusk bread.
| dough makeup range | Maximum capacity | Power | Voltage | External Dimensions | Makeup Width |
| 100-1500g | *4200pcs/h | 3.5kW | 220/380V | 56000*1200*1650(mm) | 420(mm) |
7.Tunnel Oven.different tunnel oven meet differnt capacity demands.Our main tunnel oven is FIR Serie tunnel oven,Indirect tunnel oven and continuous oven.
![欧西诺 汉堡面包 烘焙食品机械 自动流水[00_00_03][20240326-151552]](http://5irorwxhrmijrij.ldycdn.com/cloud/llBpjKqkRikSllmnrnloj/ouxinuo-hanbaomianbao-hongbeishipinjixie-zidongliushui-00_00_03.png)
8.Spiral Cooling Tower
Industrialized durable design, equipped with automated bread production lines. Optional plastic or stainless steel mesh belt.
Application: For bakery factory or food bread making factory
This Comprehensive bread making production line,can meet the demand for different kind of bread,the capacity is customized.We can design it according your capacity and layout.
If you are interested in,please do not hesitate to contact with us.
