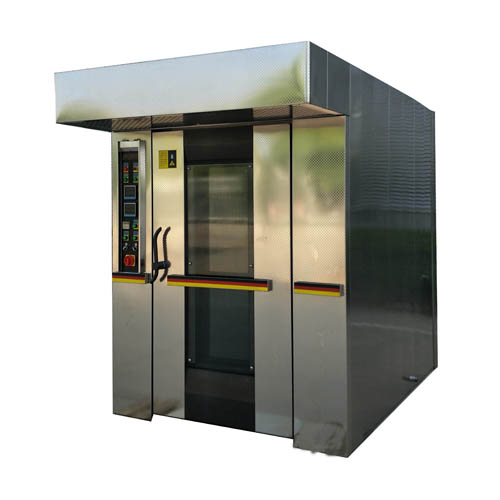

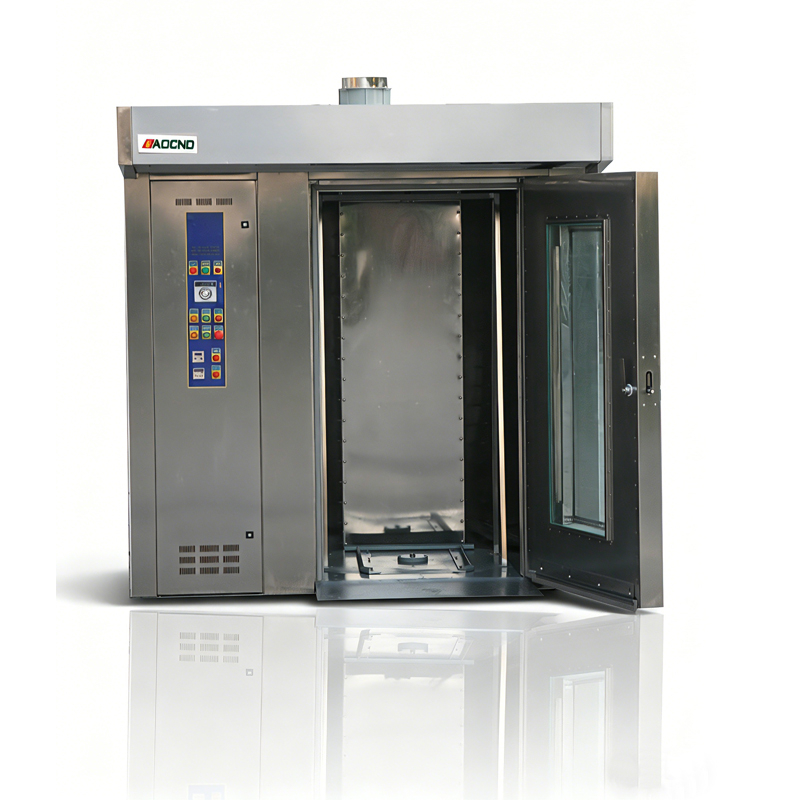

Rotary Oven

The energy required in the baking process is fine tuned by an energy saving heating element, a well balanced blower with precision nozzle which distributes the exact amount of heat necessary into the baking chamber.

Quantity:


Specification:

Model

Applicable baking tray size(mm)

Baking area(㎡)

Maximum yield (According to bread/kg)

Dimensions(mm)

Weight(kg)

R4060D

40*60               16-18 trays

4.3

50

108*136*225

650

R4060E

R4060G

R6080D

60*80               16-18 trays

40*60               32-36 trays



5.7-8.6

120

173*150*240

1100

R6080E

R6080G

R80100D

80*100               16-18 trays

45*75-2 Trolley  32-36 trays

46*76-2 Trolley  32-36 trays

9.7-14.5

195

210*183*240

1400

R80100E

R80100G

R80120D

80*120                16-18 trays

60*75-2 Trolley  32-36 trays

40*60-2 Trolley  64-72 trays

12.8-17.2

240

240*205*240

1800

R80120E

R80120G


Features:

1.Even Baking.

2. Minimum baking time

Programmable timers with digital display to control baking time.

Low Energy & Fuel Consumption

Automatic heat & time setting

Apply to bake all kinds of bread, cake, cookie, biscuit and pasties

The burner imported from Japan with low oil consumption and low exhaust emission.

The inside and outside of the oven is stainless steel

9.The diesel consumption is about 3.2L/hour for diesel type. The electric consumption is 36 for electric type. The gas type needs 3.5L per hour.

10.Baking temperature is set and heating begins. When temperature reaches the set value, heat preservation will continue for 10 to 15 minutes to make temperature between the inside and outside of the stove balanced.


Application:

1.RIELLO burner to resist 1200℃

2.7 inch LCD screen for the baker to check the rest time easily

3.Steam system can change 8 kilogram water into steam within 20 seconds.

4.Position device on top to keep the trolley facing to the door after stopping

5.360°circling hot air to keep equal and optimal fire.

6.Air exhauster and fume collecting hood on top which is environmental protected.
